To ensure the integrity and reliability of test results on your sample analysis, proper sampling techniques are important. The first selection you have to make is, are you going to sample in an “open” or “closed” sample container?



Hydrocarbon or chemical samples are normally sampled in CLOSED SAMPLING systems and containers.

The OPEN SAMPLING systems are normally used for non-volatile, non-toxic and non-hazardous samples.



Try our Sampler Request Form

Fill in the sampler request form and get quickly an answers

goto form

bio fuel, bio solvent sampler, Open or closed loop sampling, liquid sampling, dopak sampler, bottle sampler, liquid bottle sampler, screw adapter bottle sampler, dopak dpm, process sampler, sample bottle adapter dopak

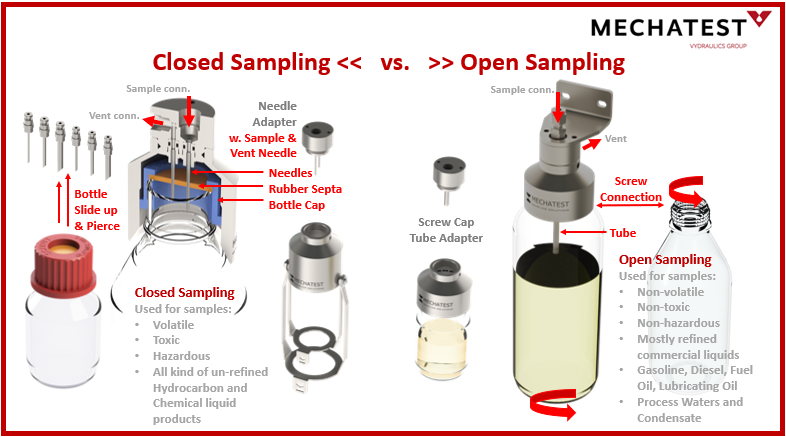

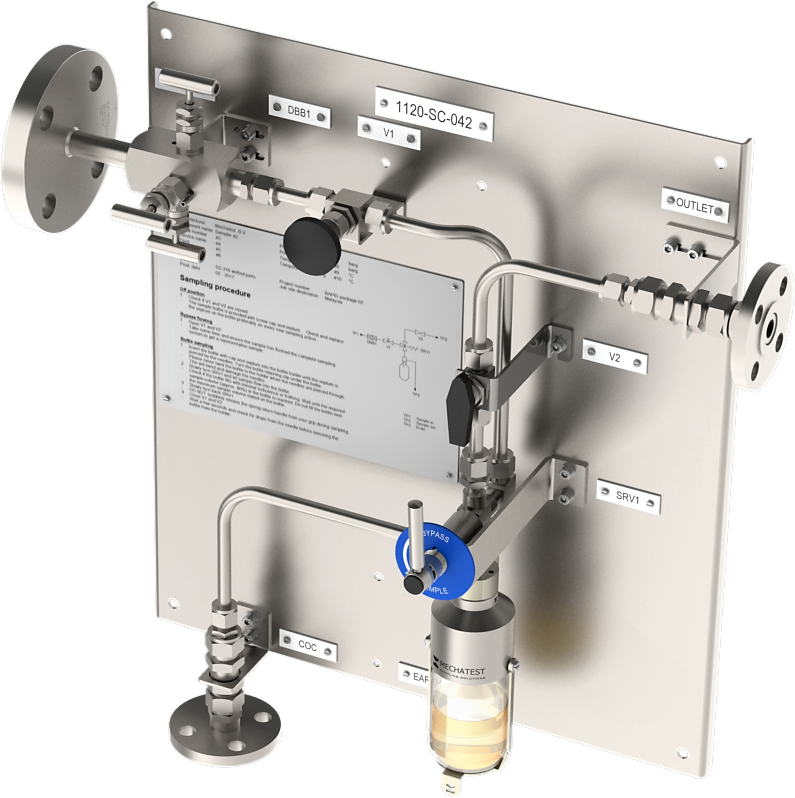

Closed Sampling

CLOSED SAMPLING systems are designed for:

  • To sample liquids or gasses free from emissions to the atmosphere.
  • The person who take the sample cannot breathe harmful substances.
  • The sample stays in closed container, prevent evaporating lighter products.
  • Prevent waste and pollution to environment.
  • Safe for your health & environment, safe for sample.

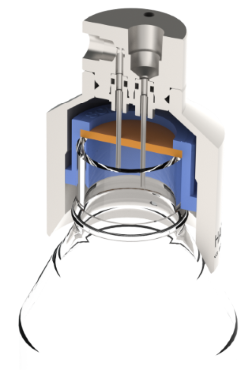

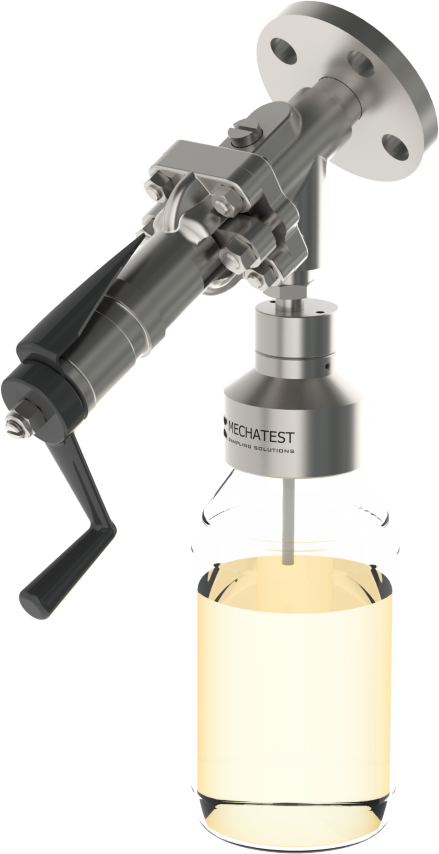

  • Bottle samplers are with needle adapter (bottle + cap + septa), the process and vent needle are pierced through the septa, this forms a closed loop sampling solution.

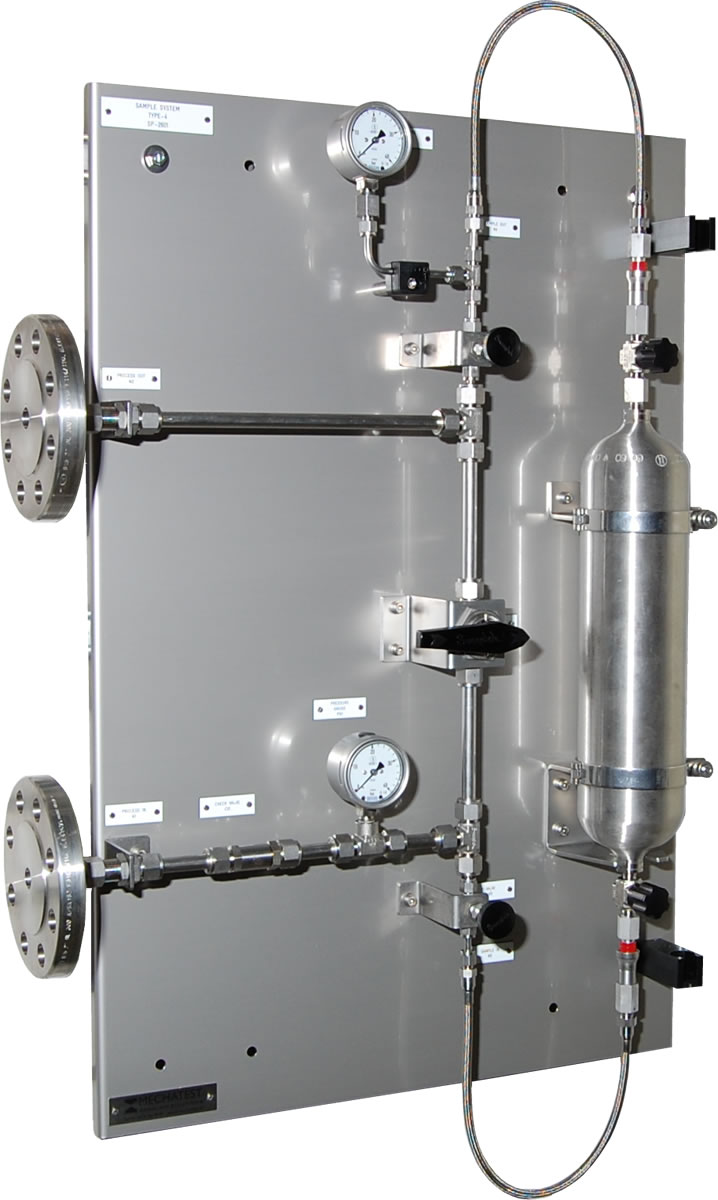

  • Higher pressure liquids and gasses sampled with sample cylinder.

Samples in petroleum refineries, petrochemical complexes and chemical industry are either flammable or hazardous.

These sampling systems are designed to handle a wide range of fluids like:

  • Petroleum liquids
  • Low and high pressure liquid and gasses
  • Cold and hot flashing liquids
  • Toxic fluids
  • Hazardous fluids with high vaporization pressures
  • Dangerous and volatile substances

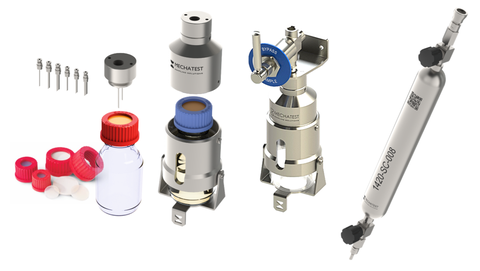

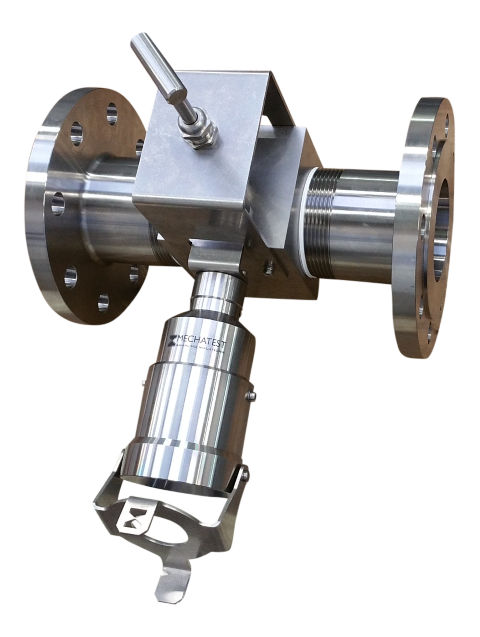

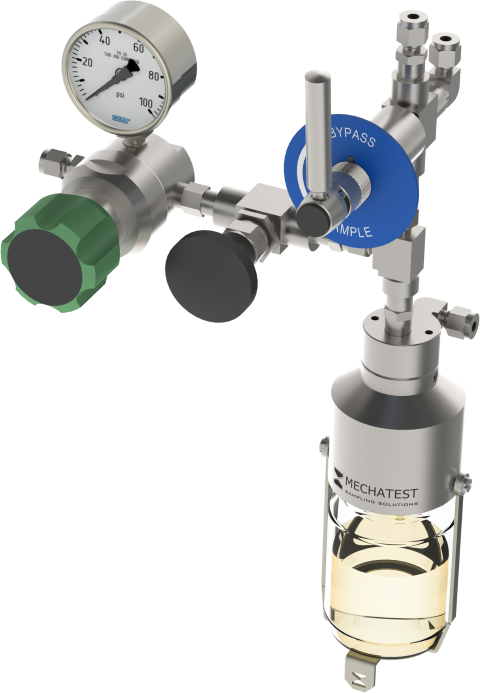

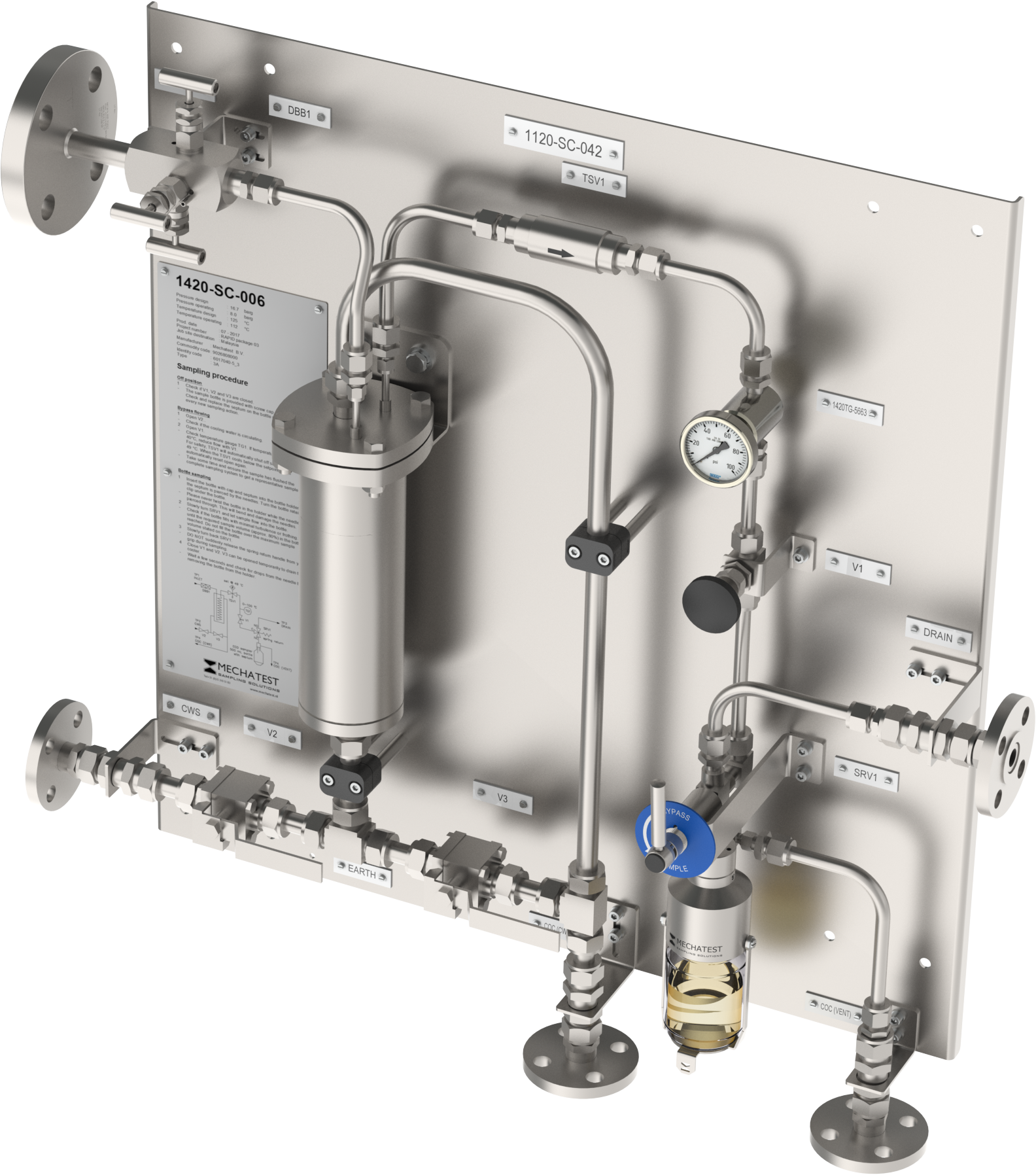

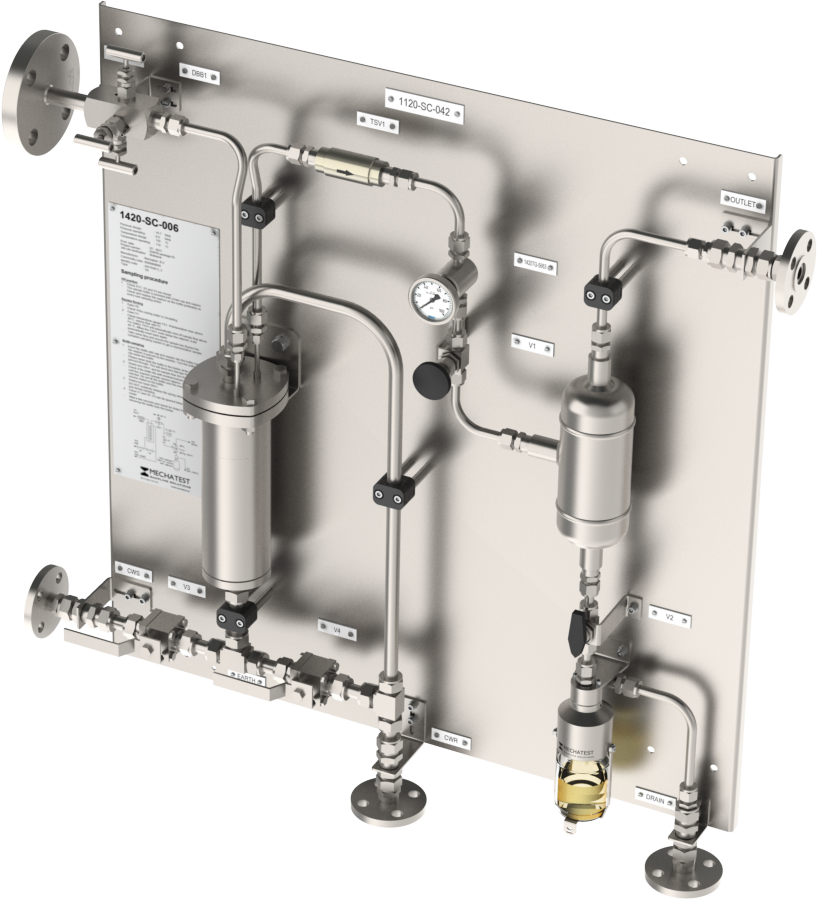

Spot Grab Sampling Hydrocarbons liquid sampling, closed sampling, On-Off Liquid Bottle Sampler, Bypass Sampler, Back Purge Liquid Sampler, Needle Purge Liquid sampler, Flow Thru Inline Sampler, Piston Valve Liquid Sampler, GC Vial Sampler, Dopak DPM
Open Sampling

OPEN SAMPLING systems are based on:

  • System design to sample only liquids with open connection to atmosphere when bottle is take out of the sampler.
  • The person who take the sample can exposed to sample vapors.
  • The sample stays in open container when sampling, after sampling to container can be closed with cap.
  • Splashing can occur, possibility for waste and pollution to environment.
  • Sampling with tubes in open bottle or by using a sample screw adapter and offers (only) zero emission during the filling of the bottle. With bottle screw adapter local spillage can be avoided.
  • Using type sample bottle adapter for screw the bottle into the holder.

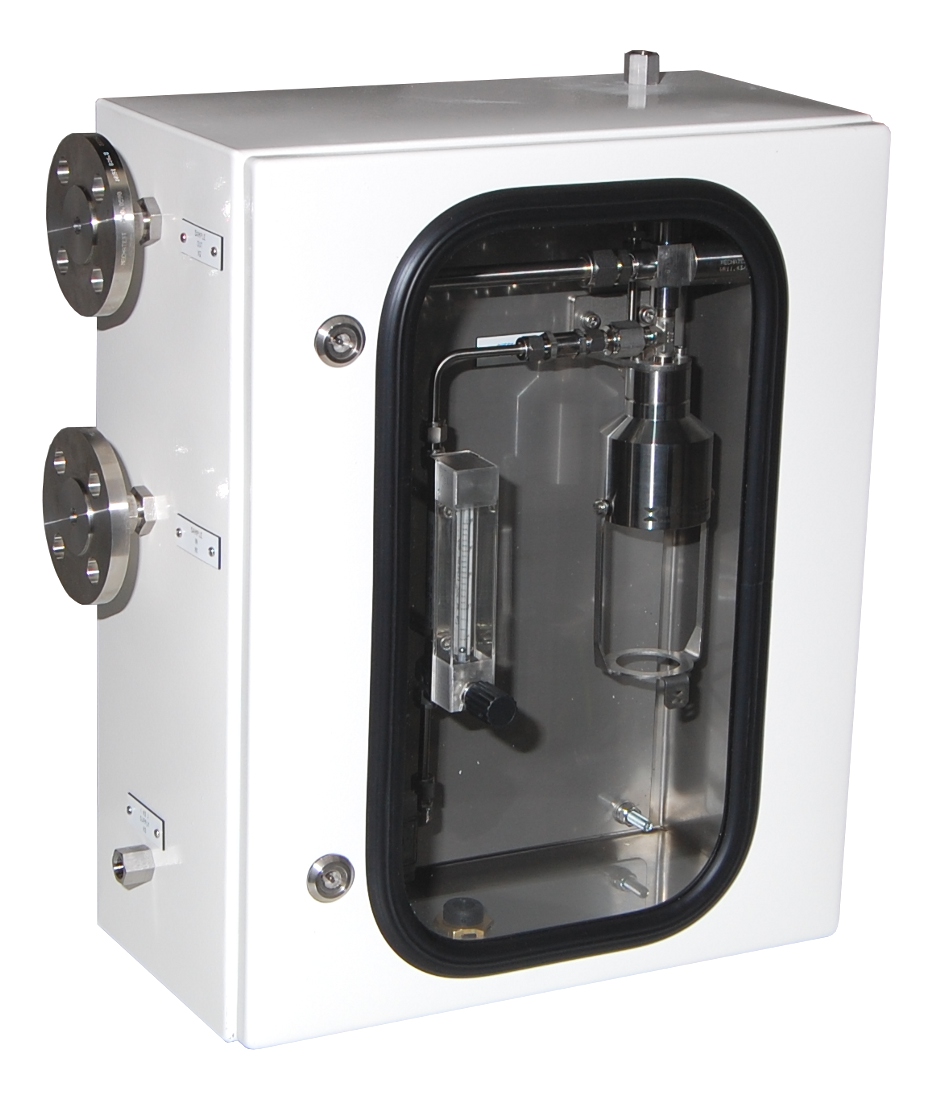

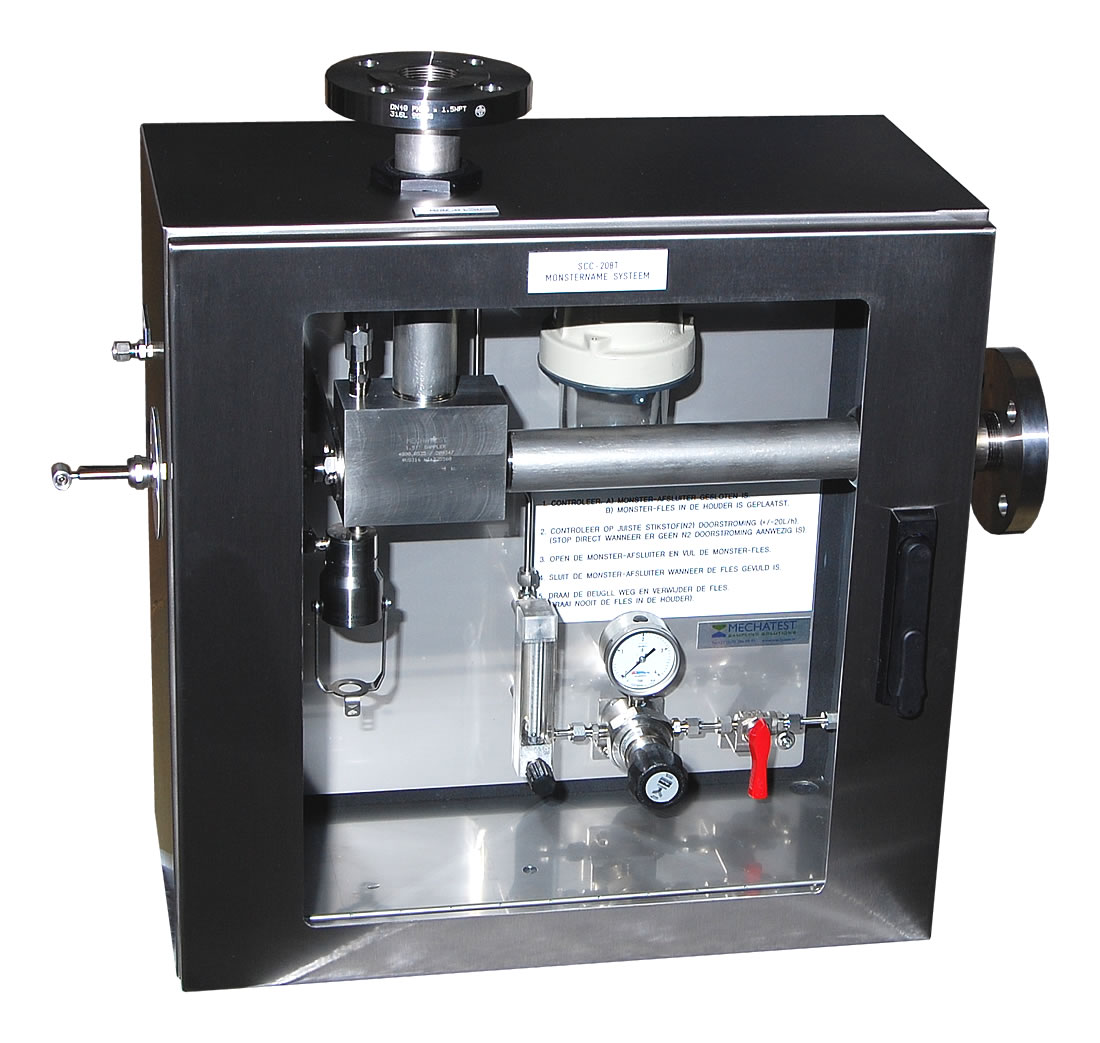

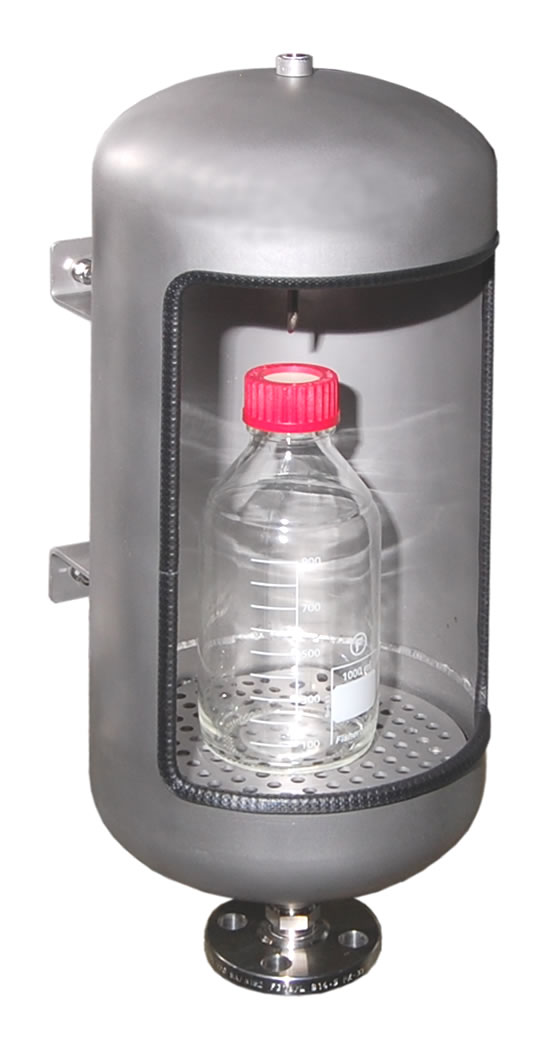

Open sampling, liquid sampler refined petroleum products, protection housing sample bottle

The “open” type sampling systems are normally used for:

  • Non-volatile
  • Non-toxic,
  • Non-hazardous samples
  • Mostly refined (commercial) gas oil, diesel oil, fuel oil, lubricating oil, process water and condensate samples.

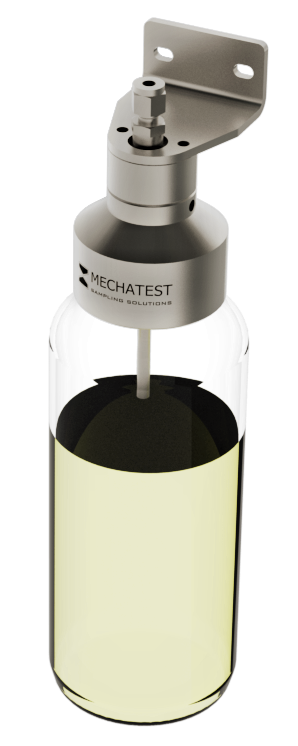

Open bottle sampling, SBA sample bottle adapter, screw type liquid sampling

In preparing this procedure the following reference was consulted: ASTM D4057 and ASTM D1265-05.
